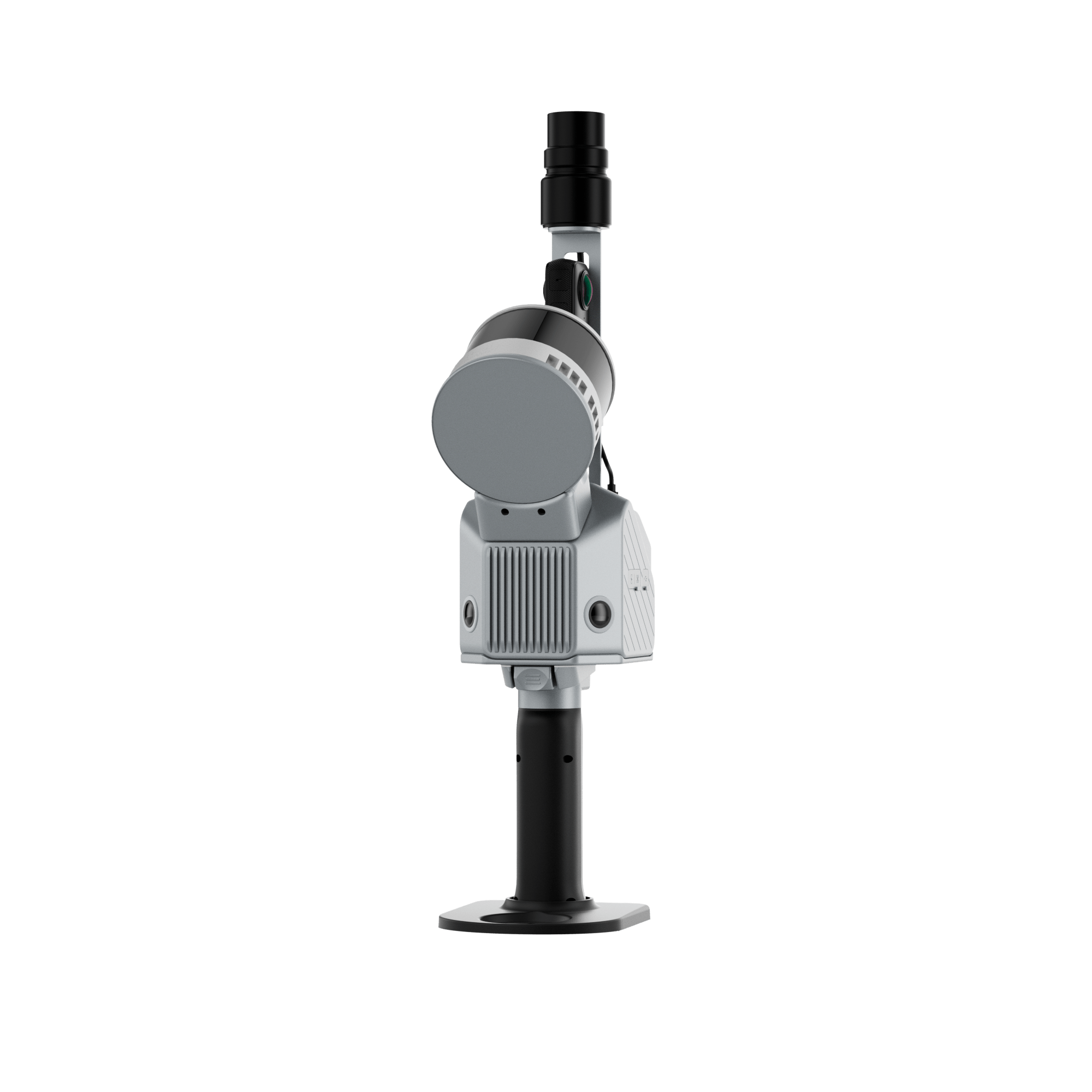

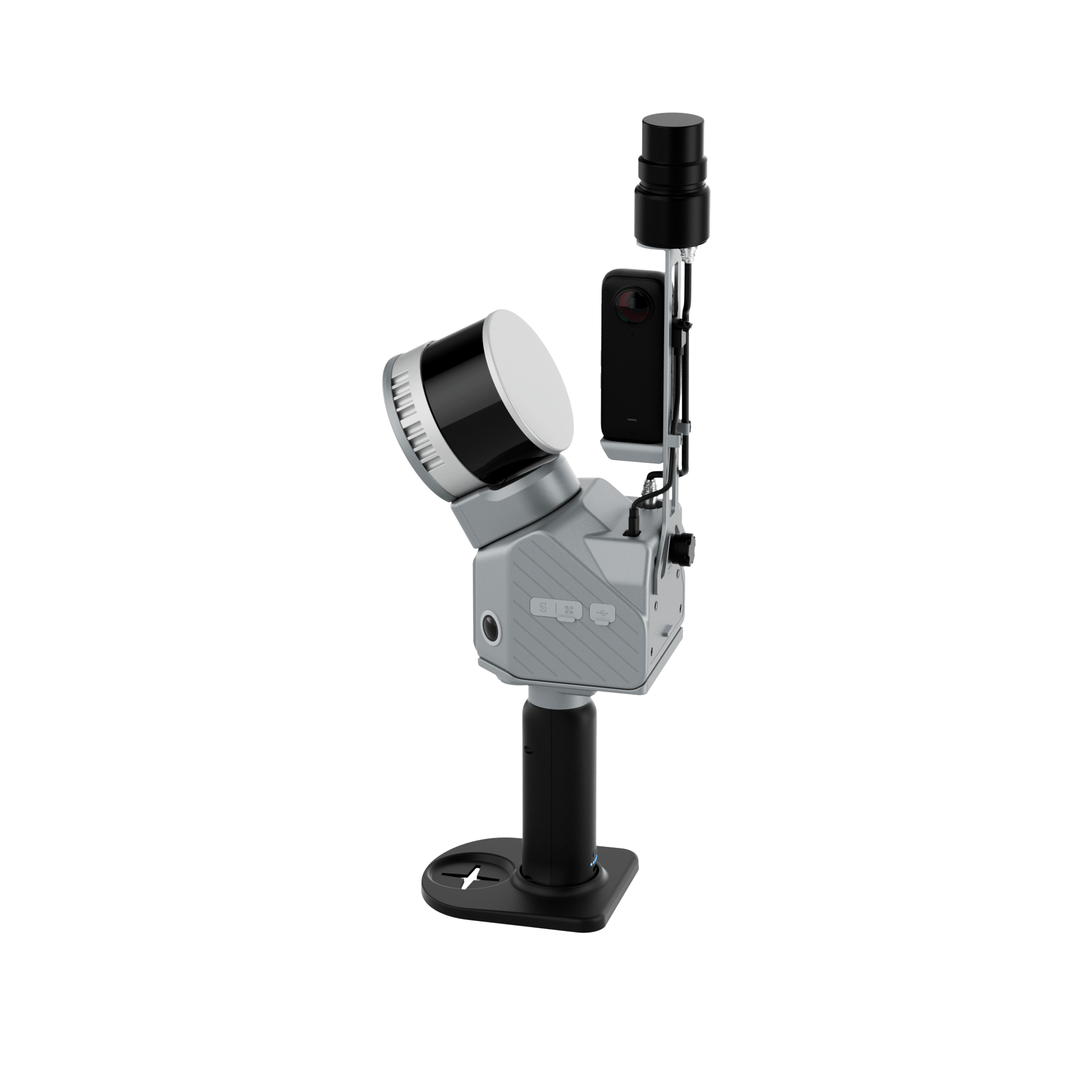

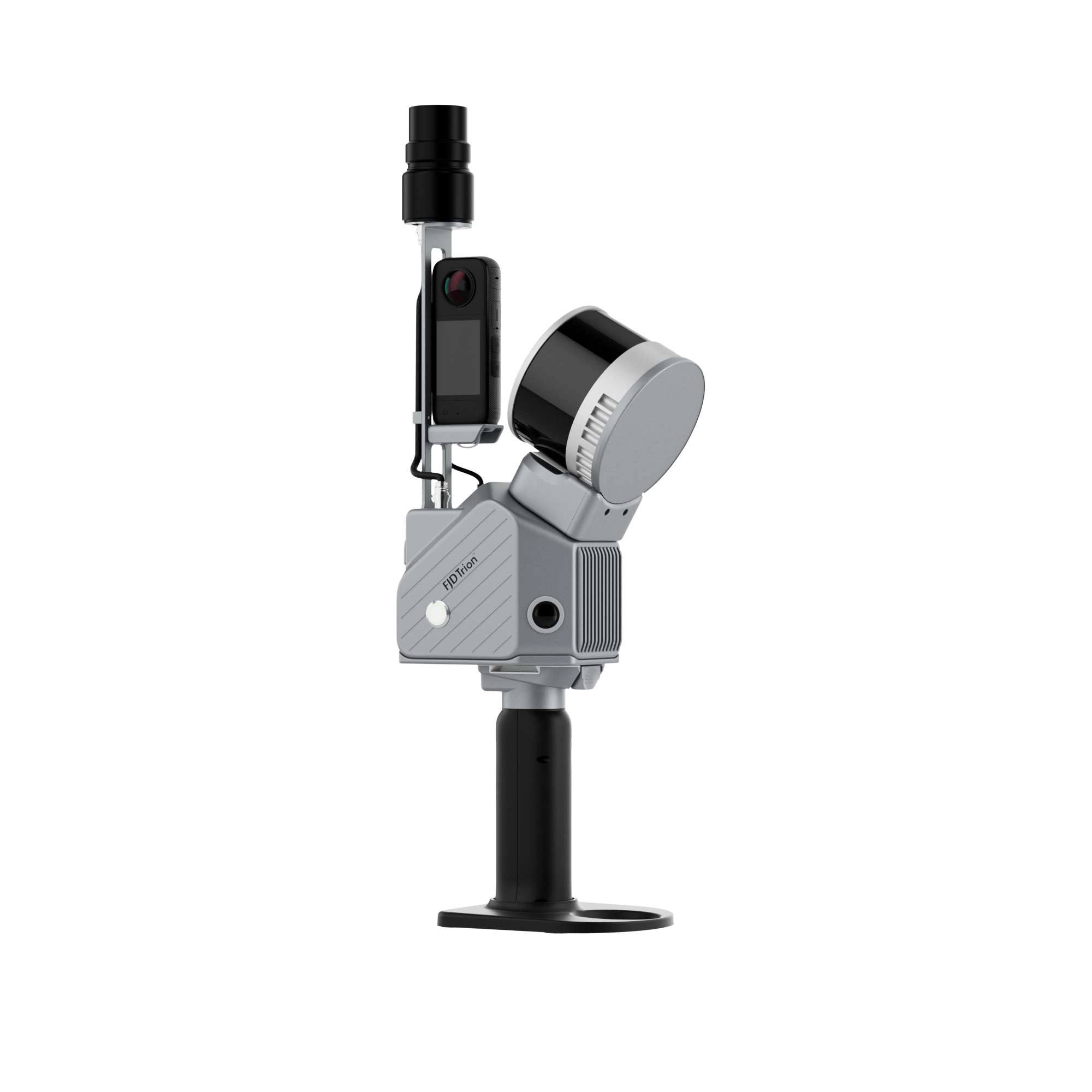

FJD Trion S2 Series 3D LiDAR Scanner

Scan Anywhere with Ease

Capture point clouds effortlessly, even in hard-to-reach areas, using practical accessories like a stabilizing vest, extension pole, drone, robot dog, and rolling suitcase.

Get a quote

What are the benefits?

1.2 cm Accuracy

Real-time
Colorization

Multi-SLAM
Algorithms

Georeferenced
Point Cloud

Multi-Scenario
Adaptation

Indoor & Outdoor
Scanning

Product Specifications

FOV	360° x 270°
Safety Level	Class 1 / 905nm, eye safety
Relative Accuracy	1.2 cm
Absolute Accuracy	3 cm
Weight	1.8 kg
Battery life	3 h
Storage	512 GB
Operating Temperature	-10℃ – 50℃
Power Consumption	25 W
Dimensions	107 x 118 x 398 mm
Data Export	Wi-Fi, USB Type-C, USB Type-A
Point Cloud Format	.las / .ply / .pts / .e57
Power Supply	10.8V, 3A
Camera
Resolution	2 x 12 MP
FOV	200°
Visual SLAM	Support
Image Export	Support
Image Format	.jpg
GNSS	-10℃~45℃
Satellite Constellation	GPS L1 / L2 / L5 BDS B1 / B2 / B3 GLONASS L1 / L2 / L3 Galileo E1 / E5a / E5b / E6
RTK Accuracy	H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS
PPK	Support
